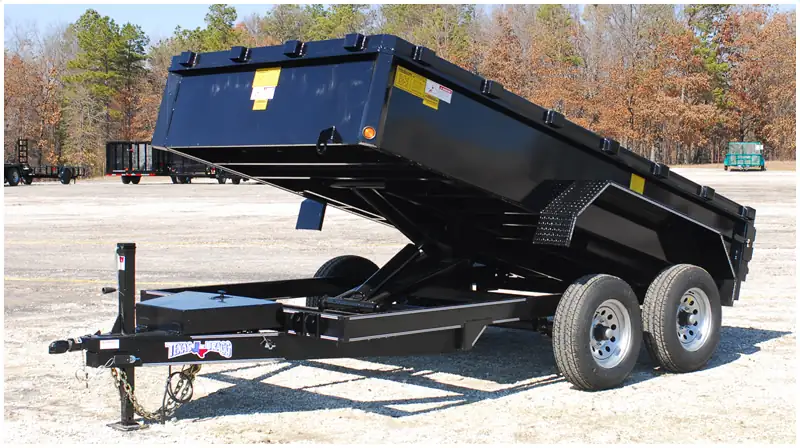

First photo is the GP Dump; others show the Texas Bragg dump line (Light / Medium / Heavy Duty).
Dump Trailers · Tandem axle
General Purpose Dump
The everyday hydraulic dump: 18″ sides, a scissor hoist with electric-over-hydraulic power, and a dual-action rear gate that swings or spreads. Brakes on both axles and a 10,000# GVWR.
10,000#
GVWR
6½′
bed width
18″
sides
Choose a size
Pricing set by your local dealer. Call the factory: (903) 572-3674
Specifications
| Models | 6½′ × 10′ HD (18″ sides) · 6½′ × 12′ HD (18″ sides) |
|---|---|
| GVWR | 10,000# |
| Axles | 5,200# EZ Lube, brakes on both axles |
| Hoist | Scissor hoist, electric over hydraulic |
| Power | Pump with battery and remote · lockable box for pump and battery |
| Rear gate | Dual-action rear gate |
| Coupler / jack | 2 5/16″ Bulldog coupler · 7K drop-leg jack |
| Wheels & tires | Silver mod wheels · new 225/15 bias tires |
| Fenders | Diamond plate |
| Electrical | Sealed-beam lighting · sealed wiring harness · 6- or 7-way plug · electric breakaway system |
Optional features
- ✓ Stake pockets
- ✓ Tie-downs in floor
- ✓ Adjustable channel coupler
- ✓ LED lights
- ✓ Slide-in ramps
- ✓ Spare tire & wheel
- ✓ Spare tire rack
- ✓ Tire upgrade
Need more capacity?
Step up to the Medium Duty Dump (up to 14,000# GVWR, 2′–3′ sides) or the Heavy Duty Dump (20,000# GVWR, I-beam frame).
Compare dump trailers
